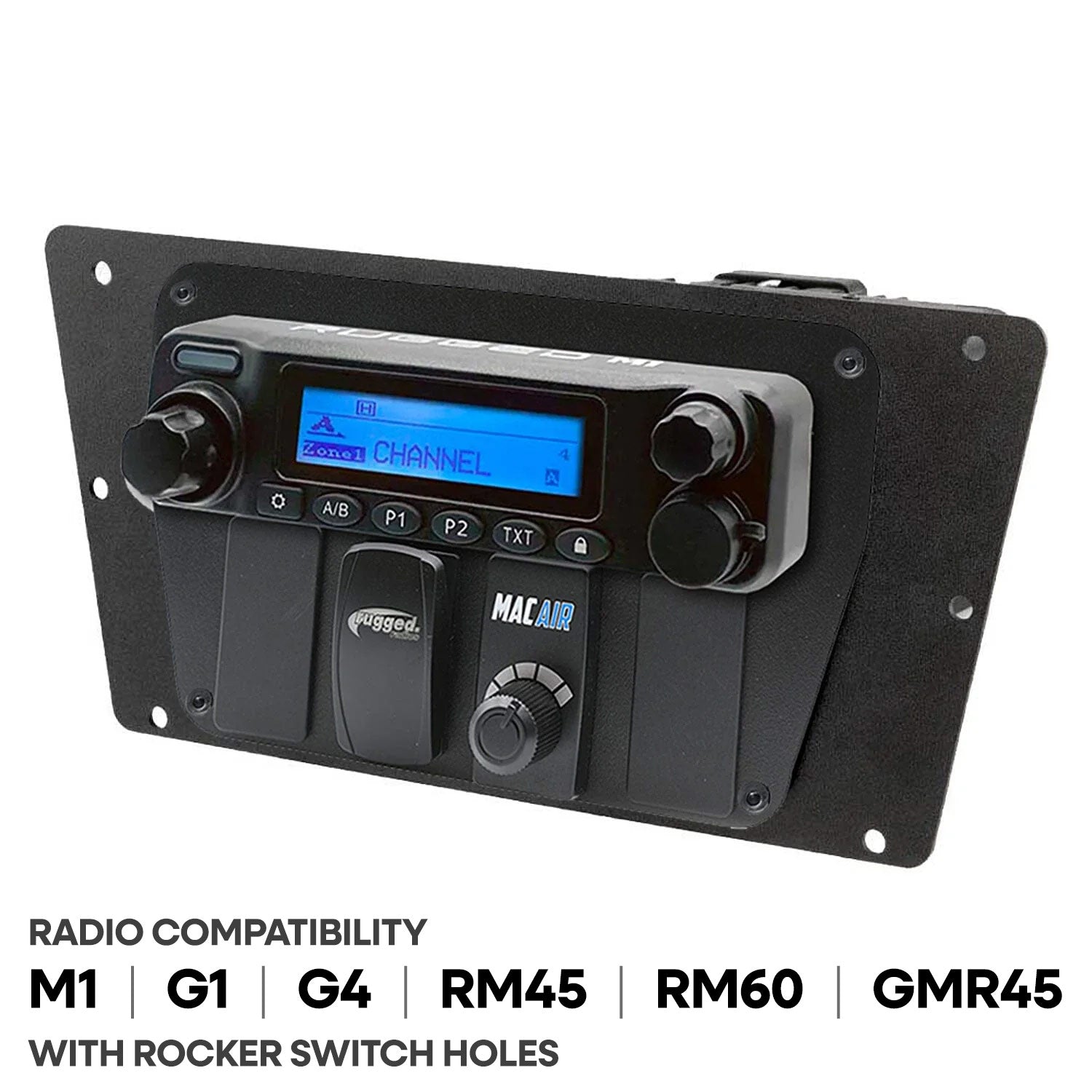

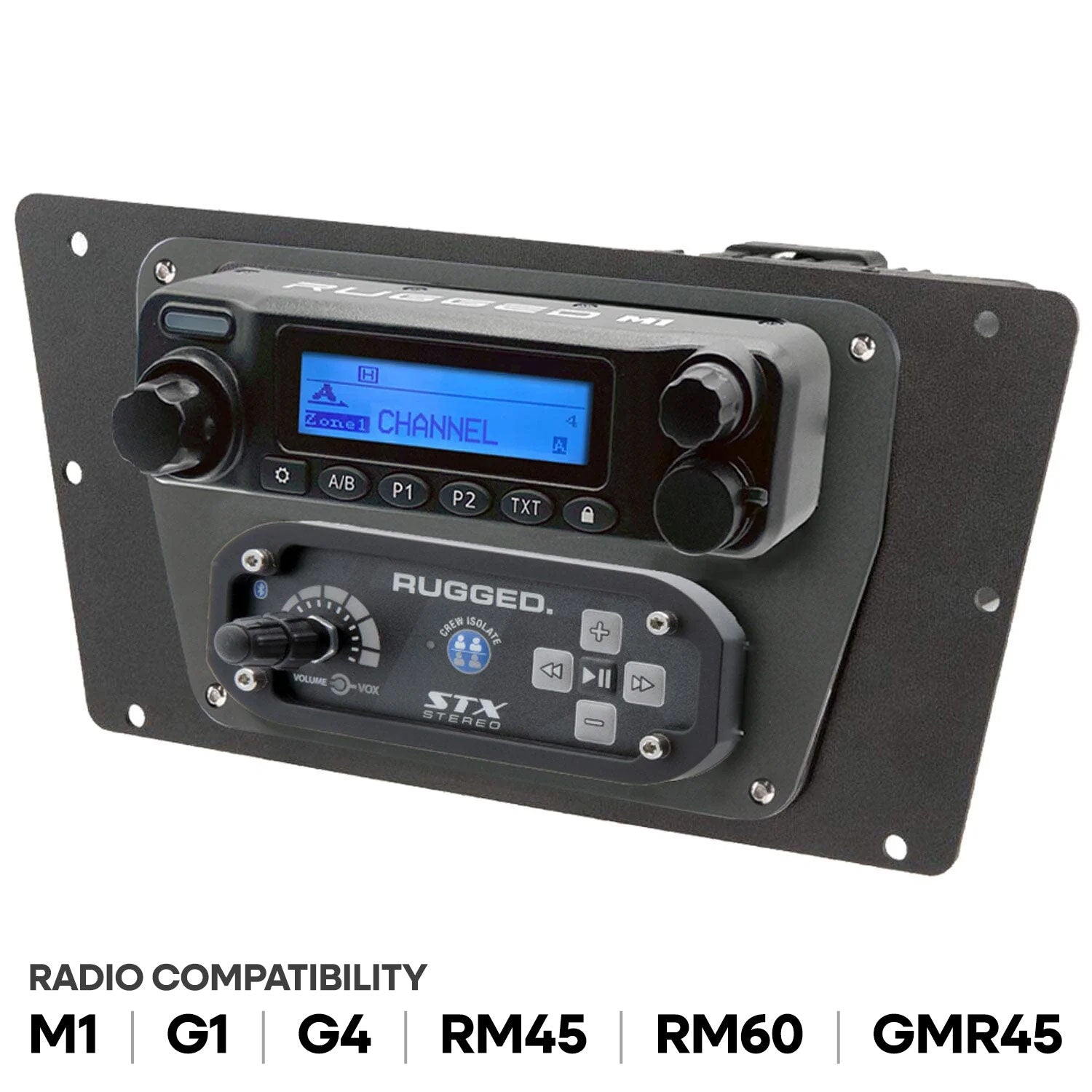

The Multi-Mount System for the Yamaha YXZ provides a simple and clean installation for your Two-way mobile radio and Rugged intercom.
Installation is easy!
- Cut a 1” hole in the back of the center dash cubby to allow Radio and Intercom wires to come through the back of the dash.
- Install the mounting plate over the center cubby and secure with the provided 6 screws.

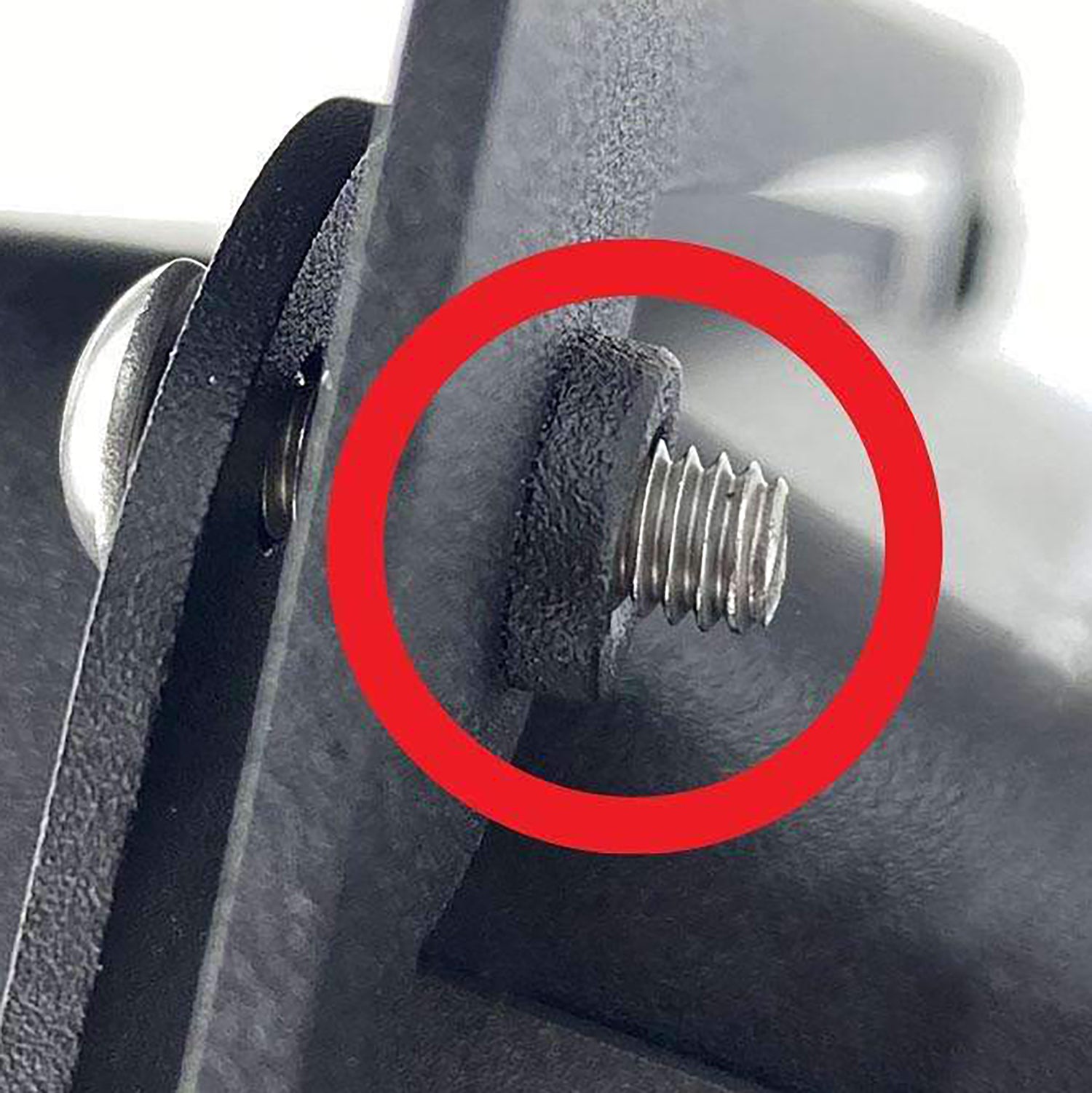

- Load the Two-way radio and intercom into the insert, then slide the insert into the mount and secure with the 4 provided insert screws.
- It’s really that simple!
Compatible Radios:

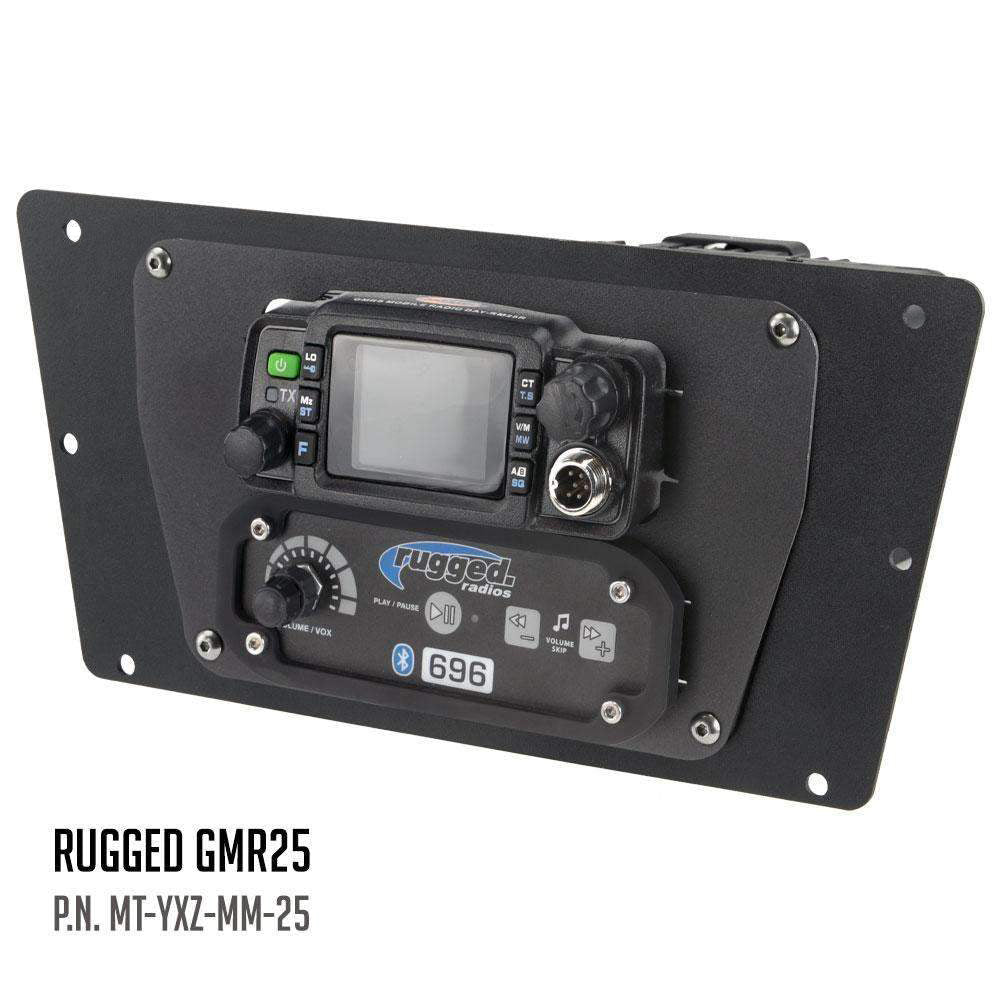

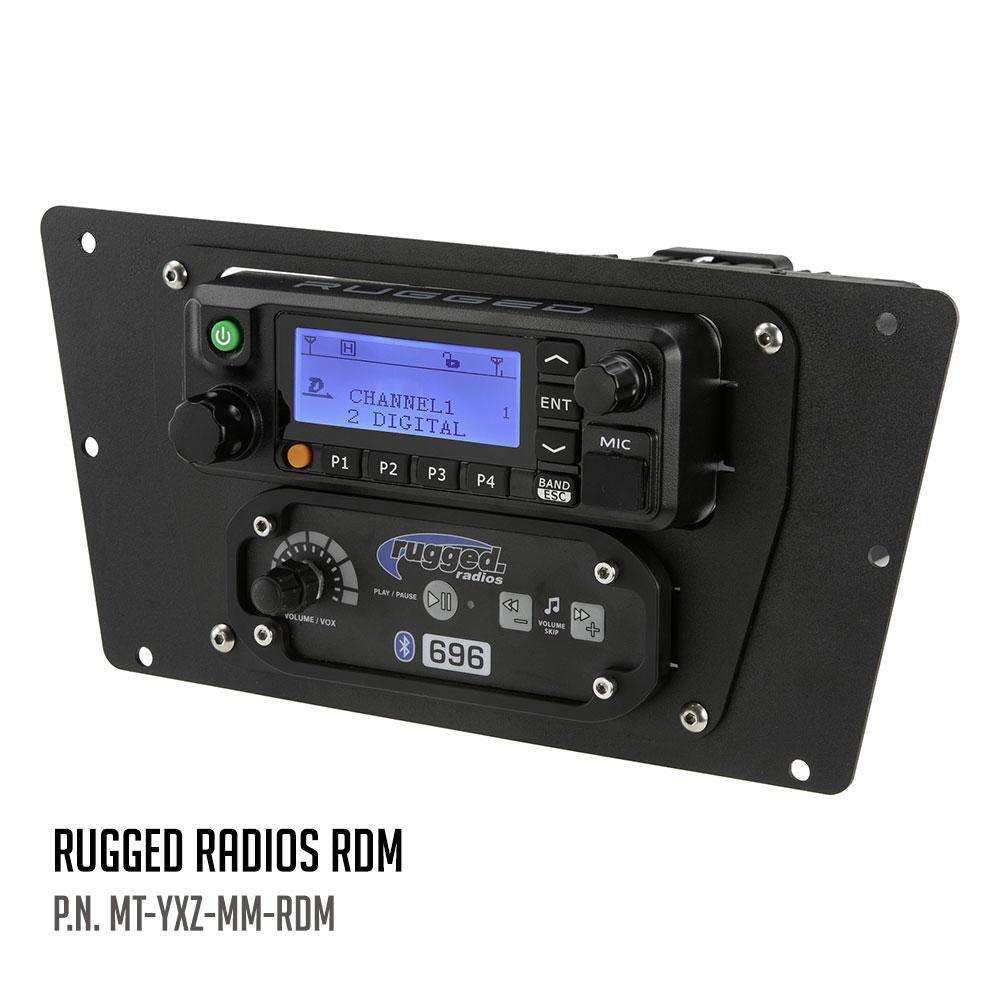

- Rugged Radios M1 / G1 / GMR25 / GMR45 / RM45 / RM60 / RDM-DB

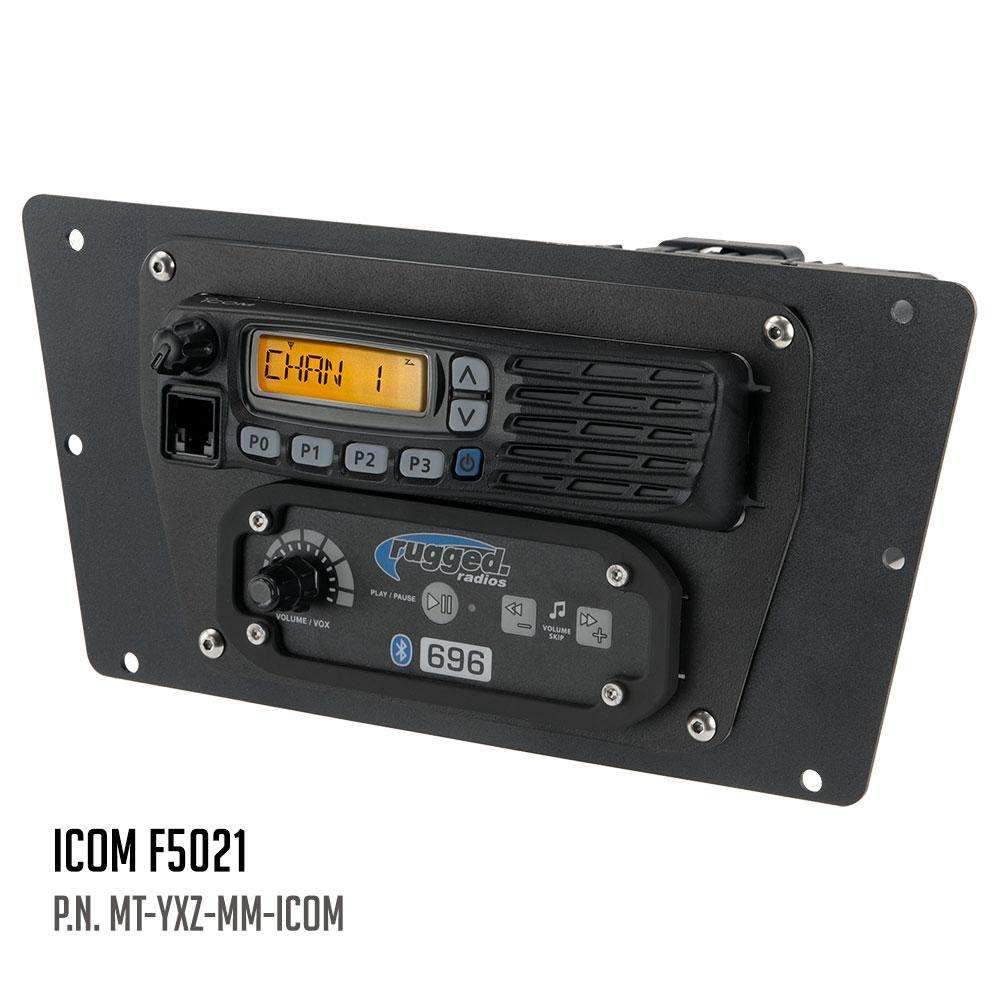

- Icom F5021

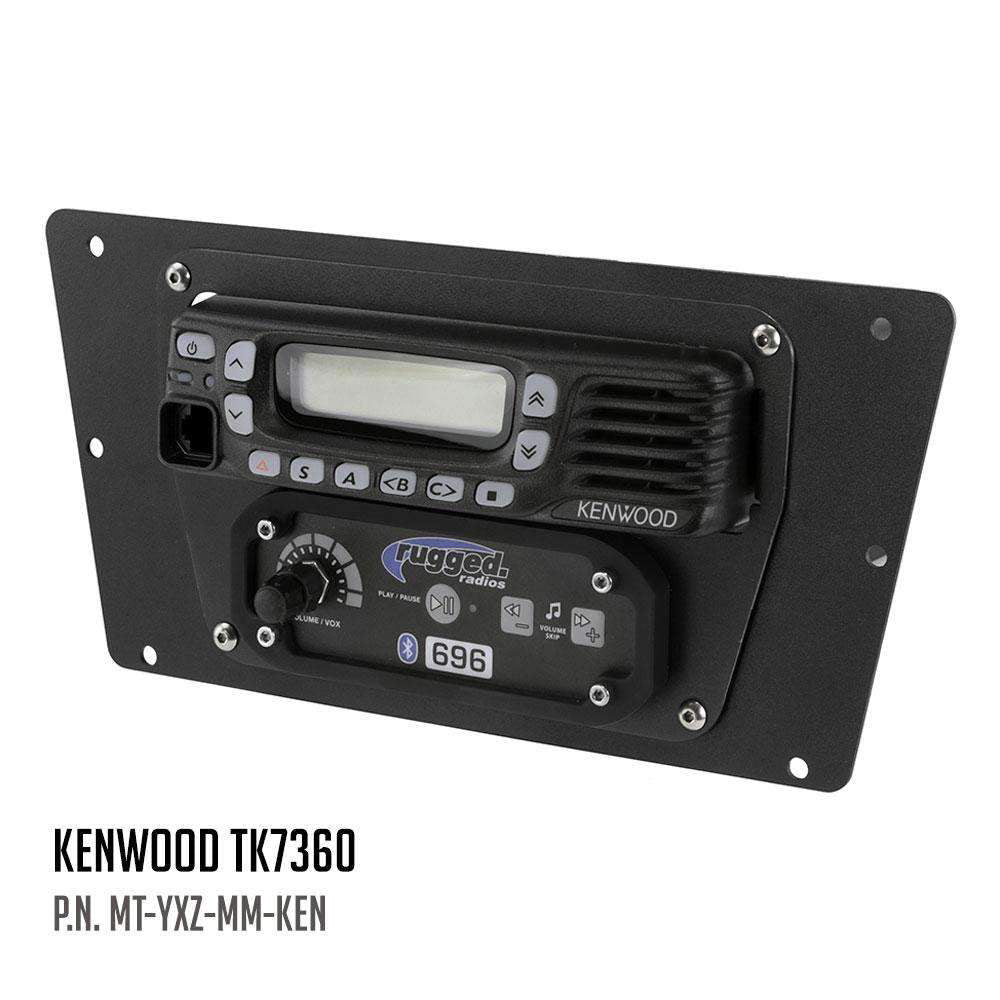

- Kenwood TK7360

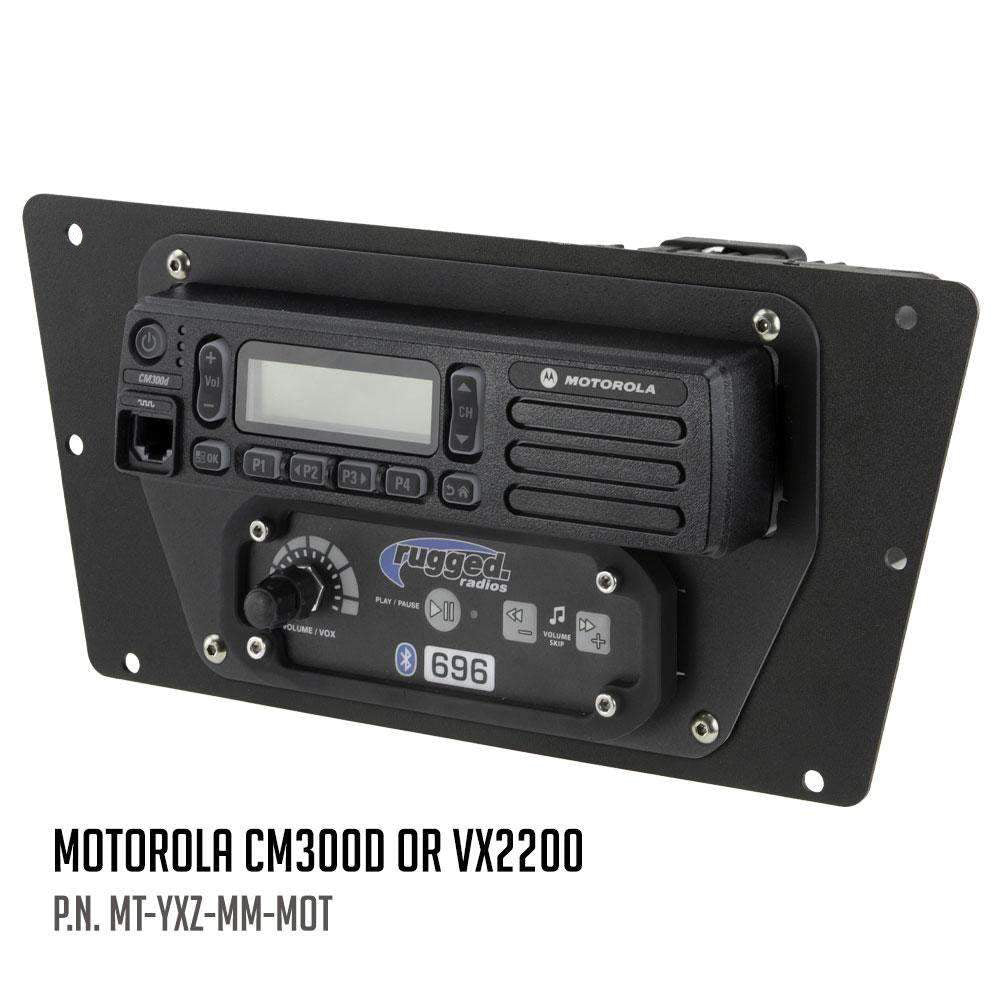

- Motorola CM300D and Motorola/Vertex VX2200
Compatible Intercoms:
- Rugged Radios RRP357
- Rugged Radios RRP360
- Rugged Radios RRP362
- Rugged Radios RRP364
- Rugged Radios RRP660
- Rugged Radios RRP660PLUS
- Rugged Radios RRP686
- Rugged Radios RRP696
- Rugged Radios RRP696PLUS
- Rugged Radios RRP5050
- Rugged Radios RRP6100
- Rugged Radios STX
