RAM Diamond Ball Base

SKU: RAM-B-238U

$9.49
Ball Size
Description

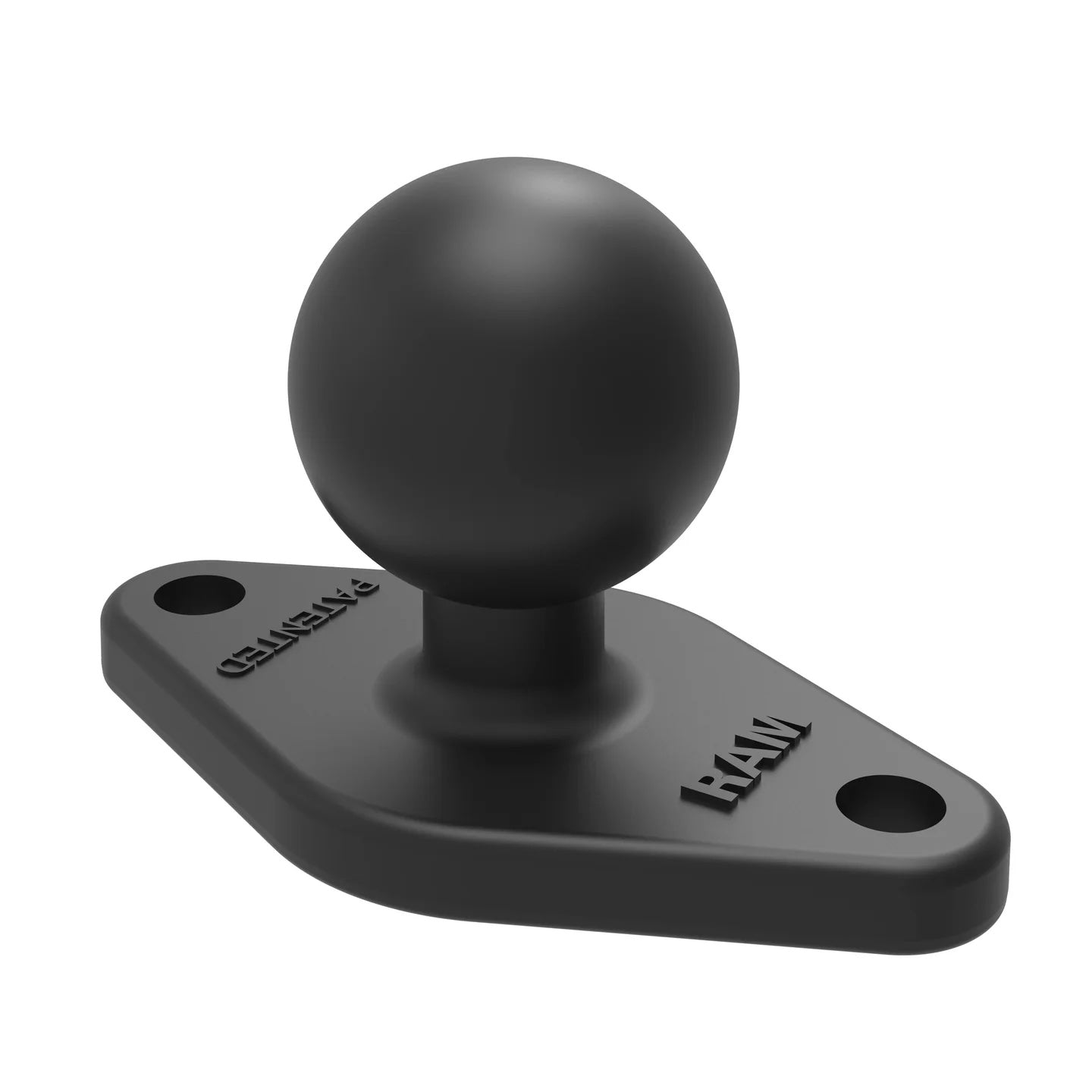

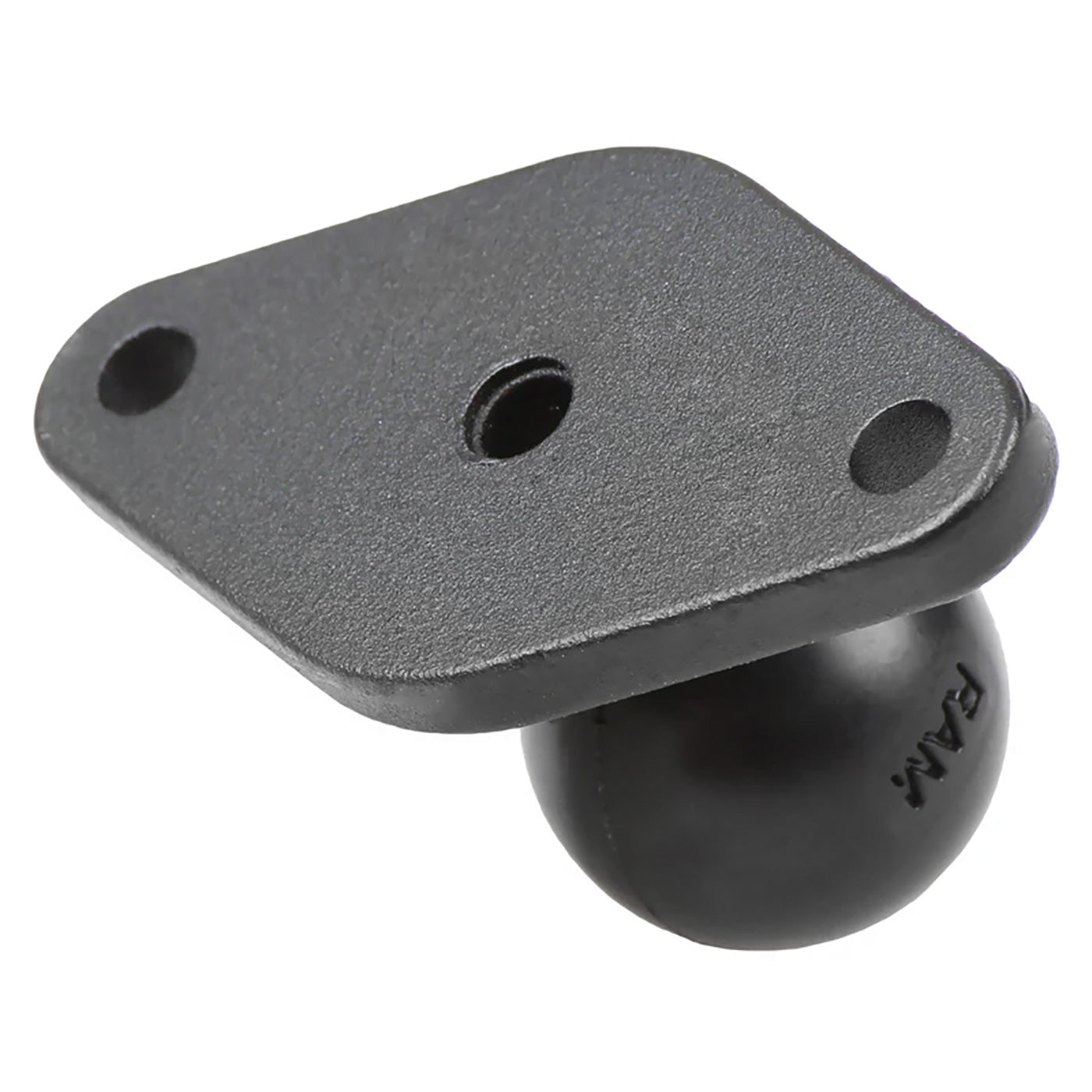

The RAM Diamond Ball Base consists of either a 1" B-Size rubber ball or C-Size 1.5" connected to a 2.43" x 1.31" diamond plate. This mounting component includes pre-drilled holes using the universal AMPS hole pattern.

The diamond plate features two holes that measure 1.912" from center to center, matching the industry-standard AMPS hole pattern. This diamond ball base is compatible with a wide variety of RAM® device holders and cradles.

Features:

  • Diamond plate features industry-standard AMPS hole pattern and measures 2.43" x 1.31"

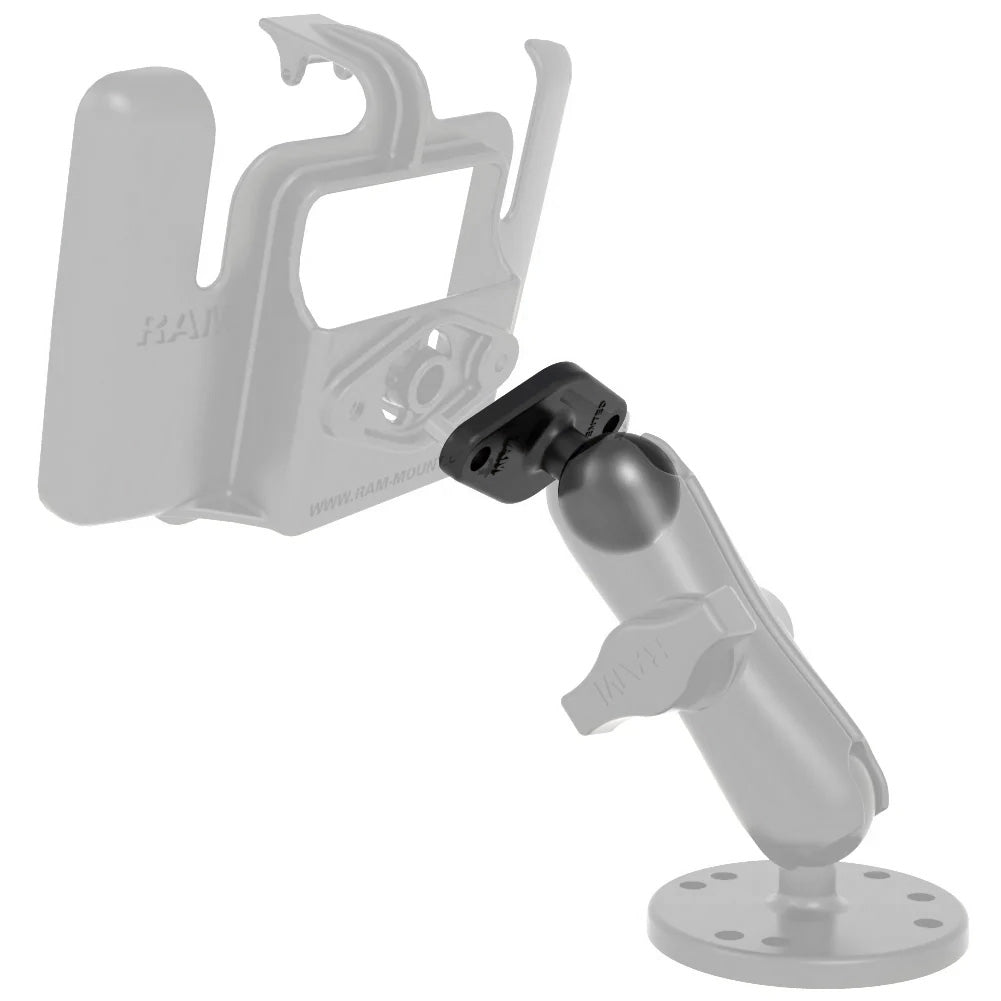

  • Compatible with several RAM® device holders and cradles; ball and socket technology allows for near-infinite adjustability
  • For B-Size ball mounts, connect to B-Size socket arms
  • For C-Size ball mounts, connect to C-Size socket arms
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Specifications:

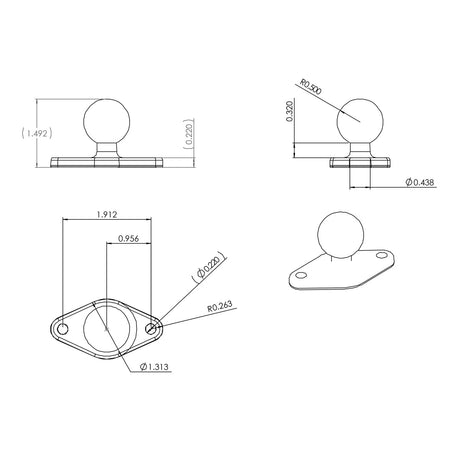

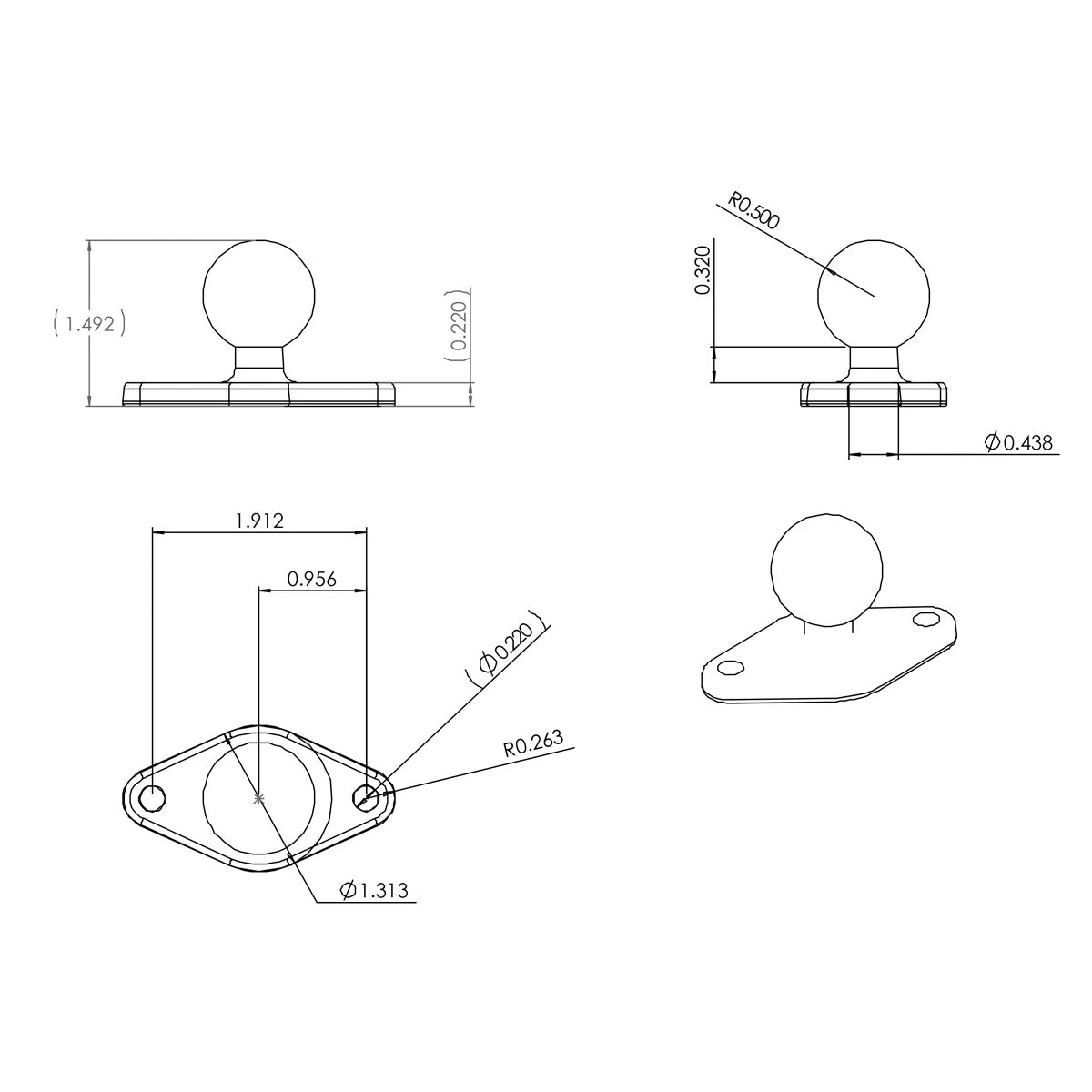

  • Hole Pattern: 2-Hole AMPS - 1.912"
  • Plate Size: 2.43" x 1.31"
  • Ball Size: B Size (1") or C Size (1.5")
  • Standard Use: Weight Capacity - 2 lbs
  • Heavy-Duty Use: Weight Capacity - 1 lb
